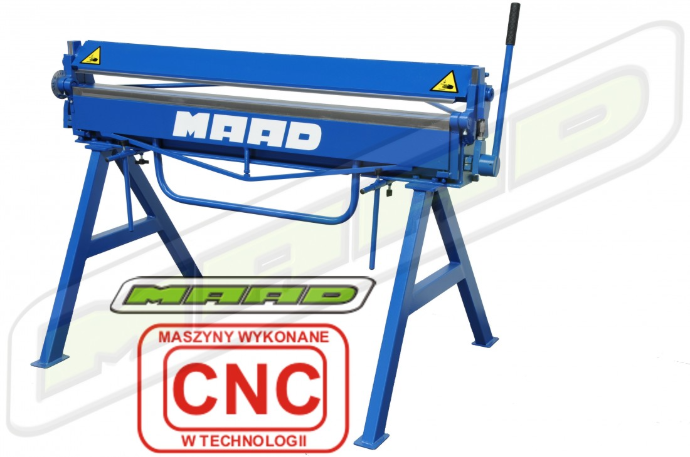

ZG-1400/0.8

Work width: 1450 mm

Max. thickness of the sheet:

0.8 mm for Rm < 400 MPa

Max. bend angle: 155°

Bending beam width: 15 mm

Weight: 130 kg

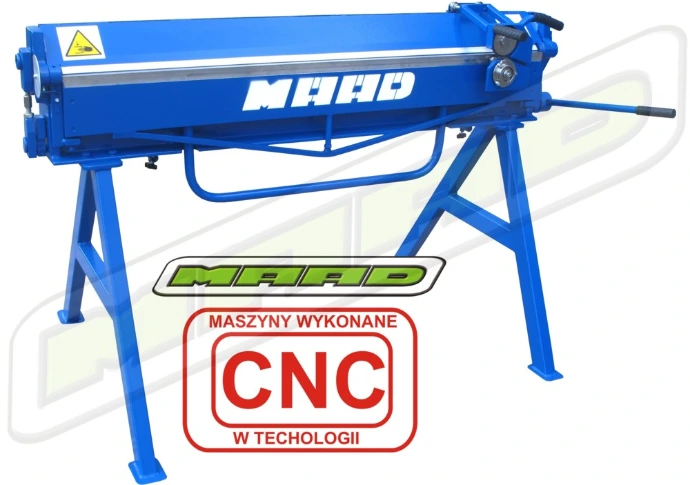

ZG-1400/1.5

Work width: 1450 mm

Max. thickness of the sheet:

1.5 mm for Rm < 400 MPa

Max. bend angle: 135°

Bending beam width: 20 mm

Weight: 180 kg

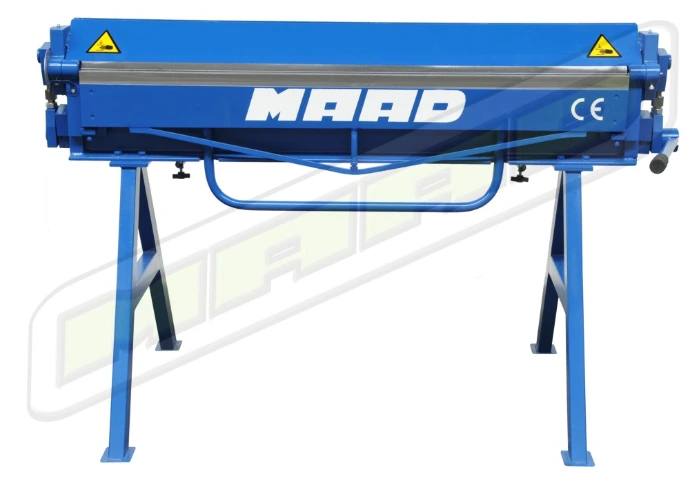

ZG-1400/2.0

Work width: 1400 mm

Max. thickness of the sheet:

2.0 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width:  25 mm

Weight: 230 kg

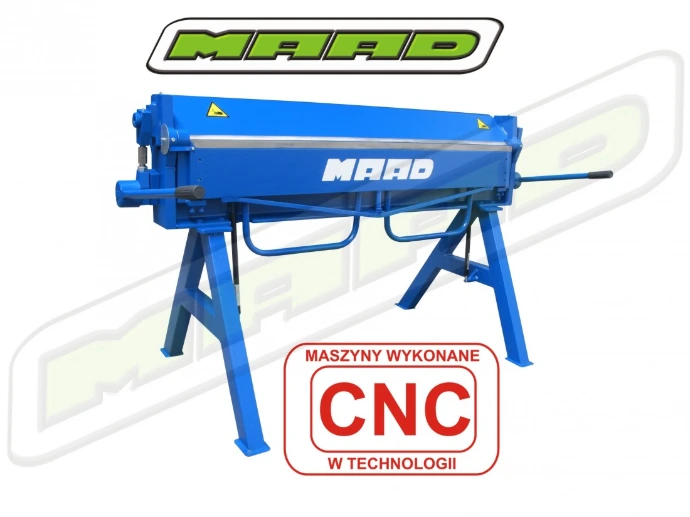

ZG-1600/2.5

Work width: 1600 mm

Max. thickness of the sheet:

2.5 mm for Rm < 320 MPa ,

1.5 mm for acid-resistant stainless steel

Max. bend angle: 135°

Bending beam width:  30 mm

Weight: 340 kg
