Work width: 1450 mm

Max. thickness of the sheet:

0.8 mm for Rm < 400 MPa

Max. bend angle: 155°

Bending beam width: 15 mm

Weight: 130 kg

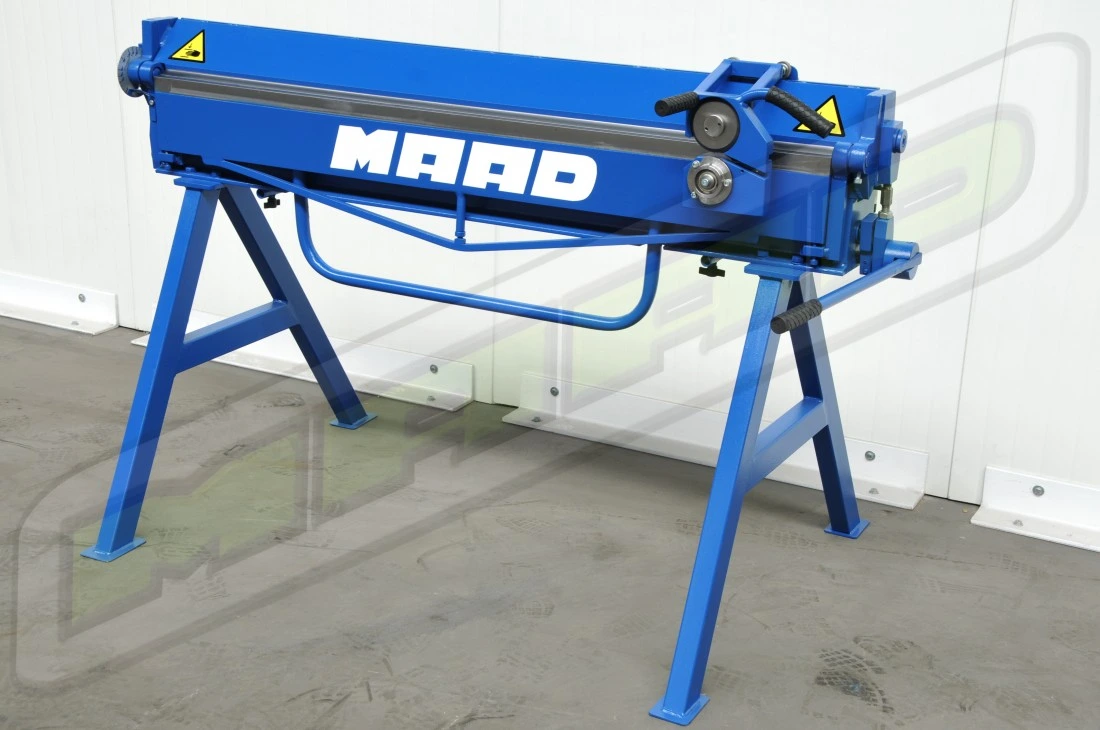

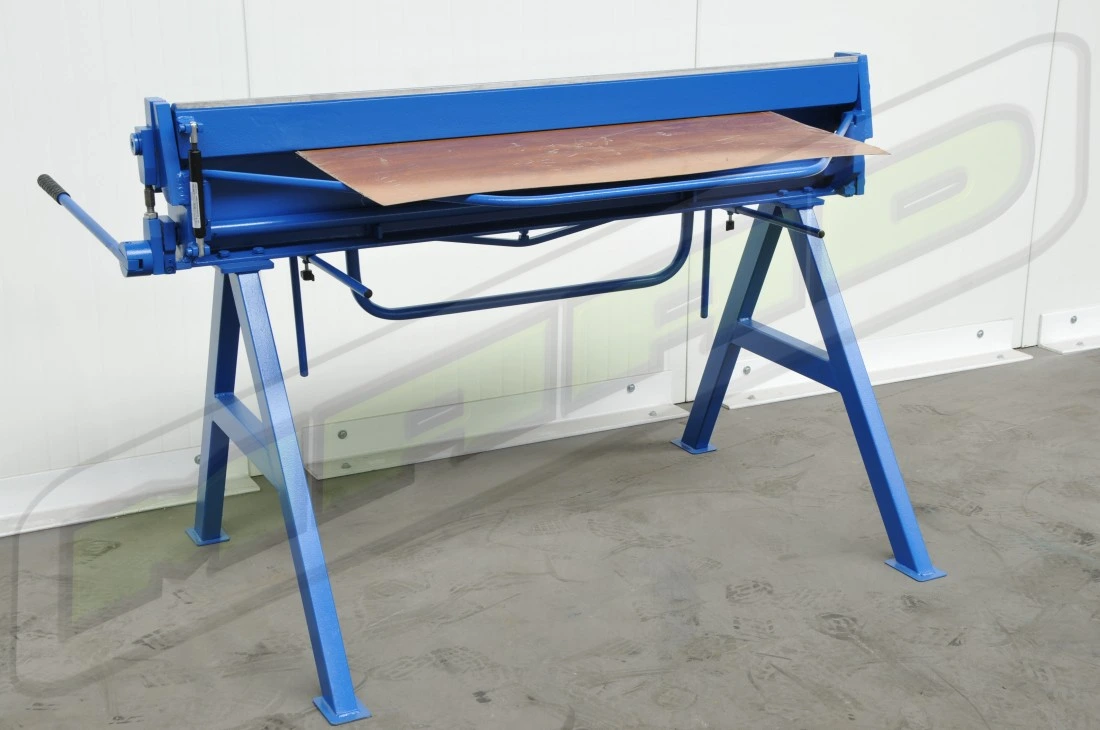

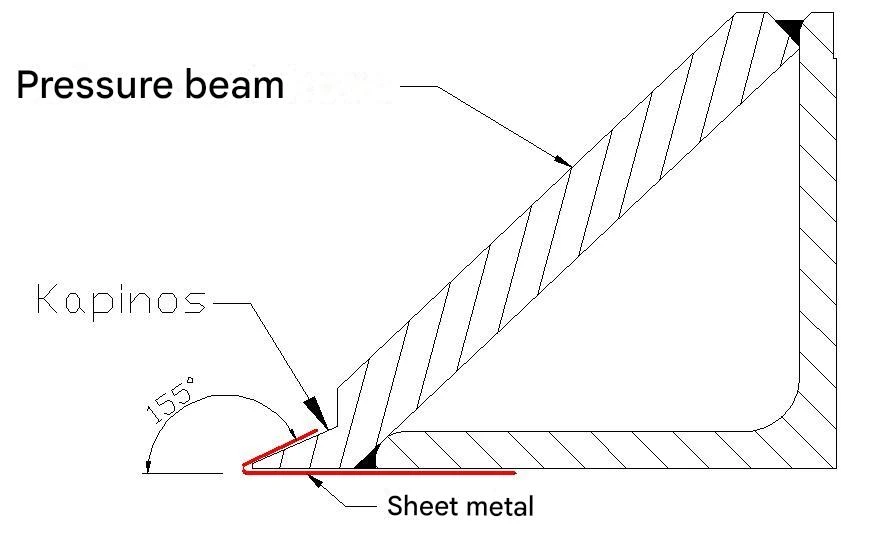

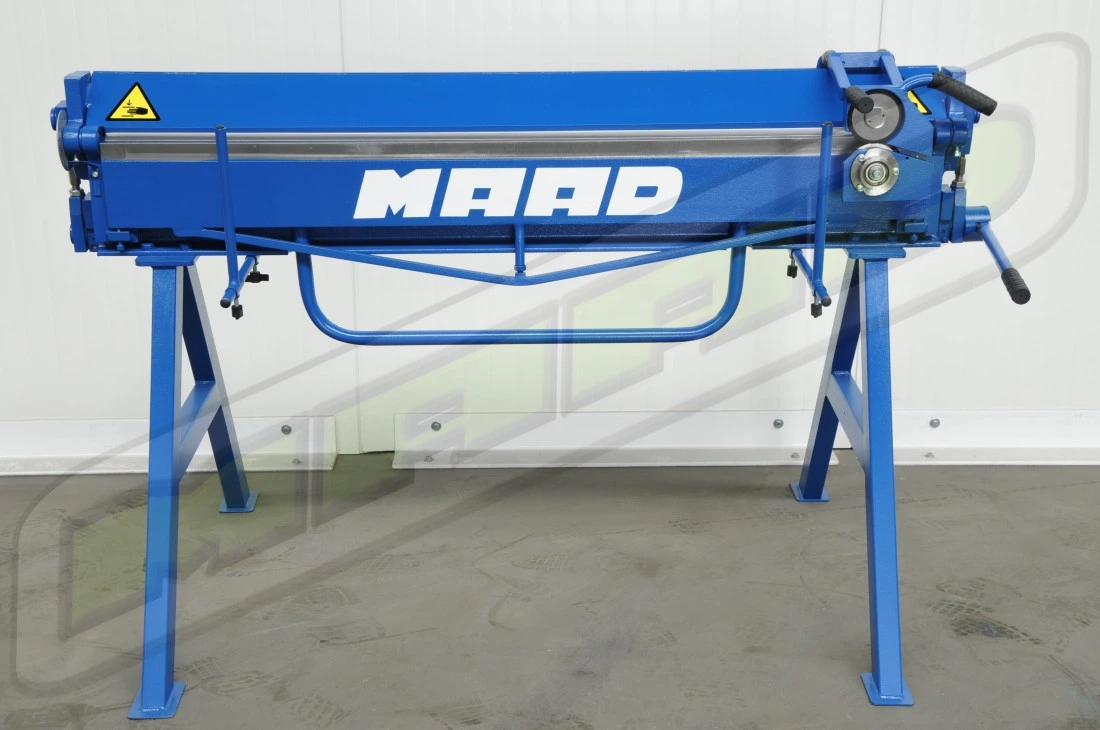

Bending machine designed to bend mainly roofing flashings with a width of up to 1400 mm. Compact and durable construction (130 kg) guarantees trouble-free operation without bending elements deformation for many years. Specially milled bending bevel allows you to bend the sheet metal up to the end of the 155. Narrow bending beam with a width of 15 mm and the lack of tension on the pressure beam guarantee the implementation of a large number of complex fabrications.

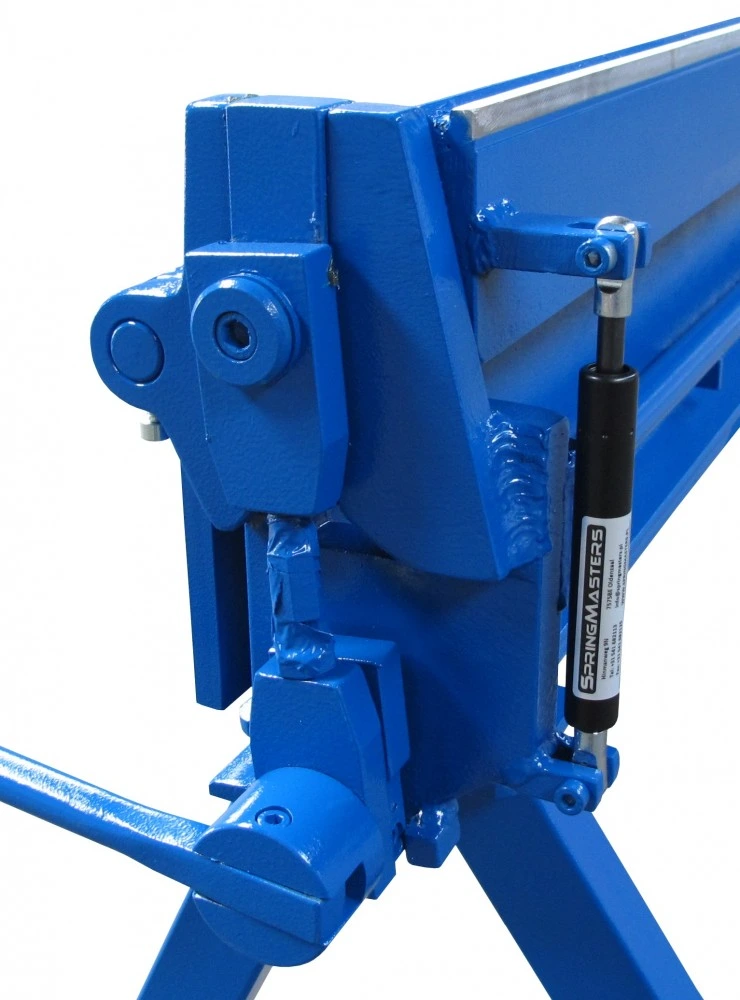

The machine is equipped with one gas cylinder for lifting the press bar to the required position.
