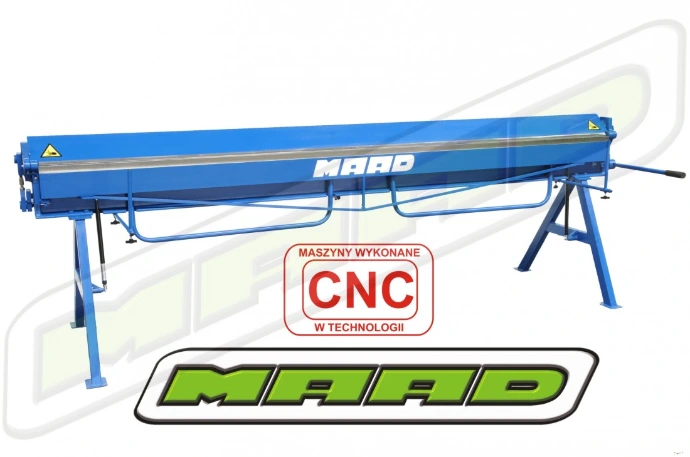

ZG-3000/0.7

Work width: 3100 mm

Max. thickness of the sheet:

0.7 mm for Rm < 400 MPa

Max. bend angle: 150°

Bending beam width: 25 mm

Weight: 470 kg

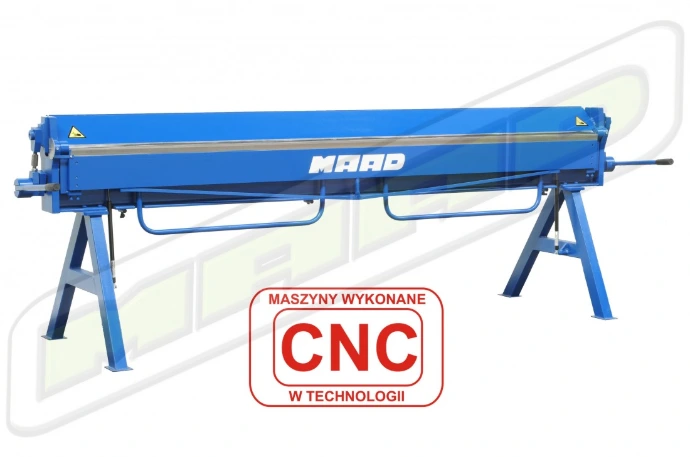

ZG-3000/1.0

Work width: 3100 mm

Max. thickness of the sheet:

1.0 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 30 mm

Weight: 700 kg

Aluminum bending capacity up to 1,5 mm !

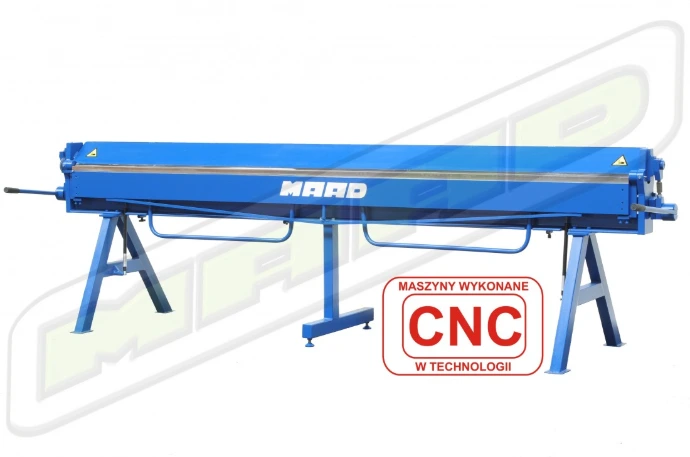

ZG-3500/0.8

Work width: 3600 mm

Max. thickness of the sheet:

0.8 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 30 mm

Weight: 800 kg
