Work width: 3600 mm

Max. thickness of the sheet:

0.8 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 30 mm

Weight: 800 kg

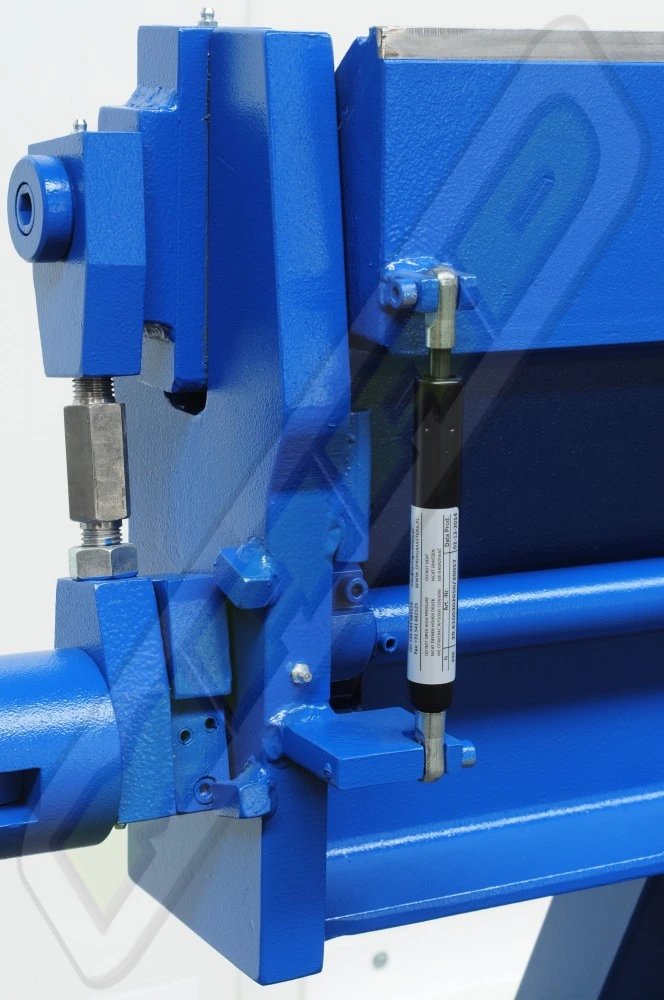

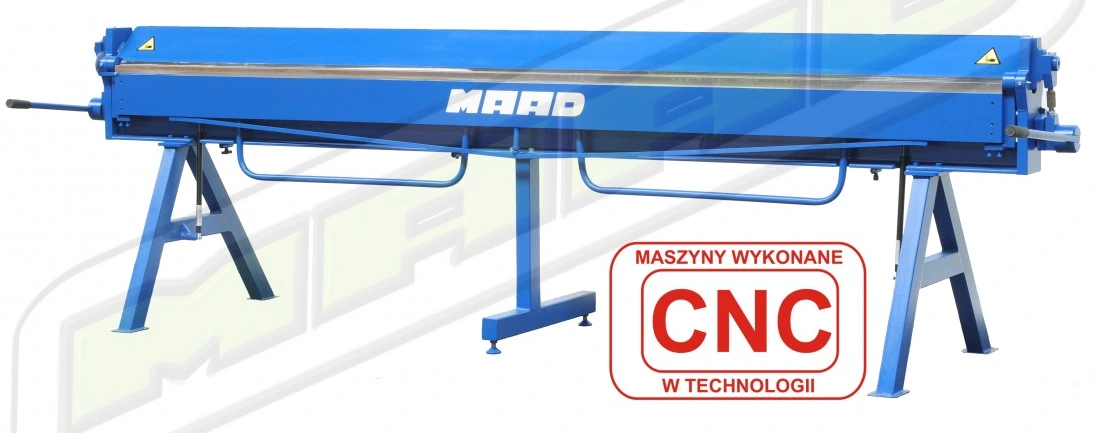

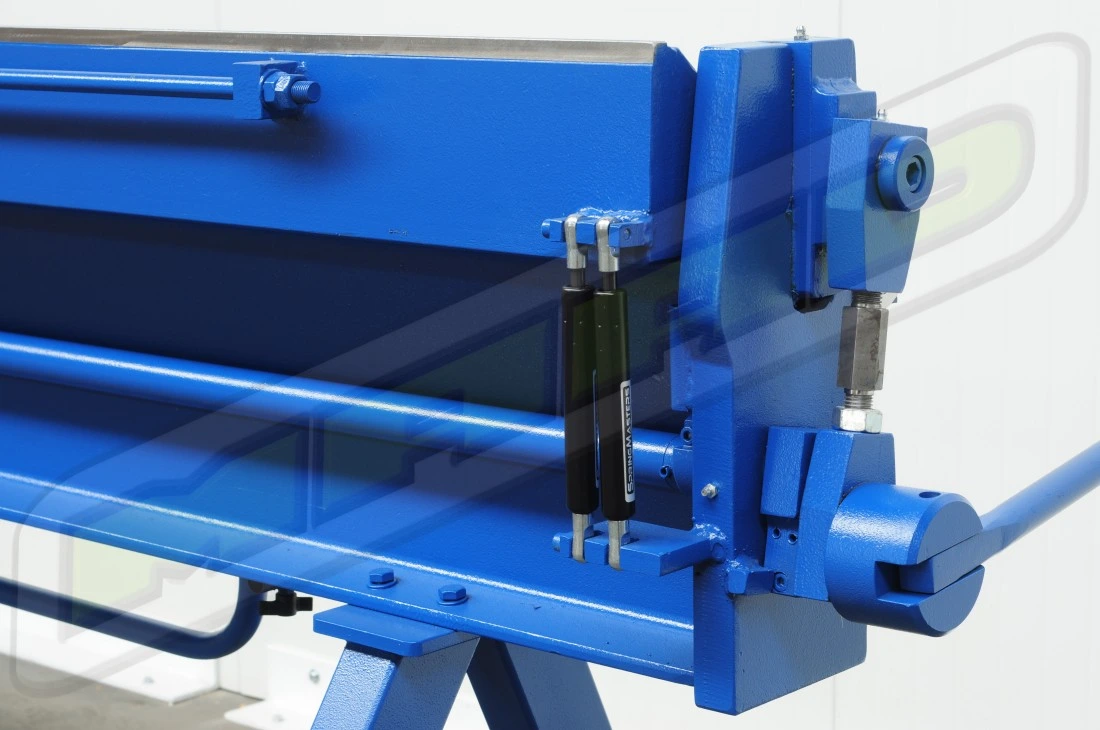

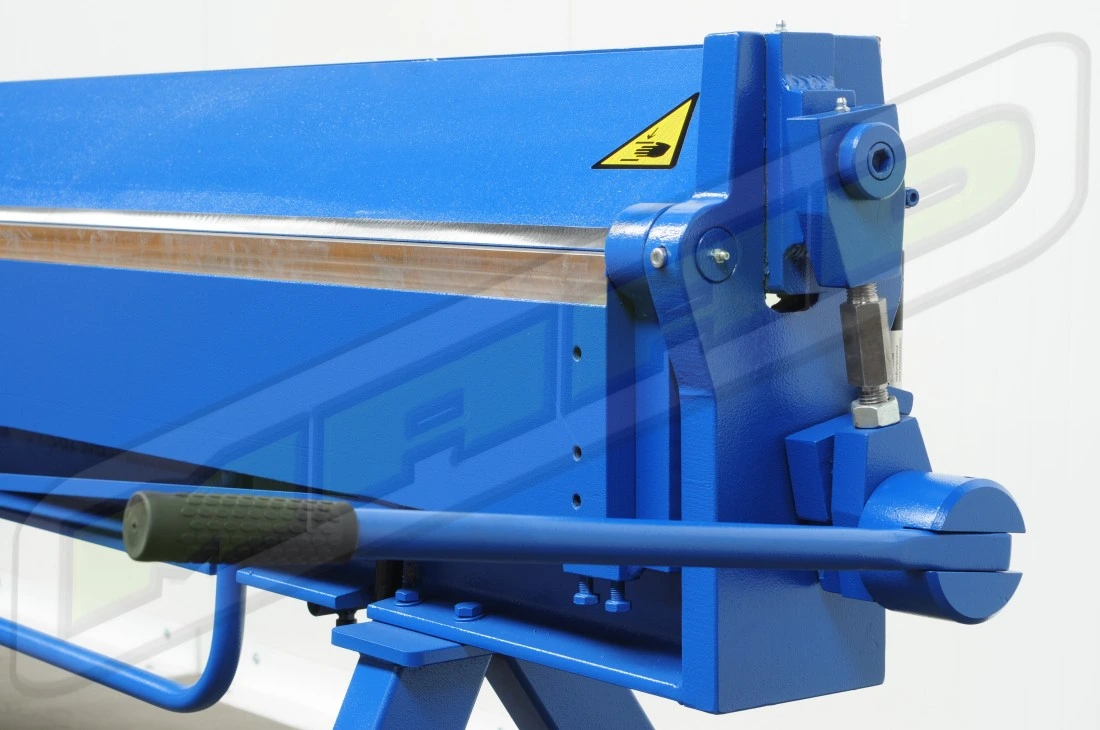

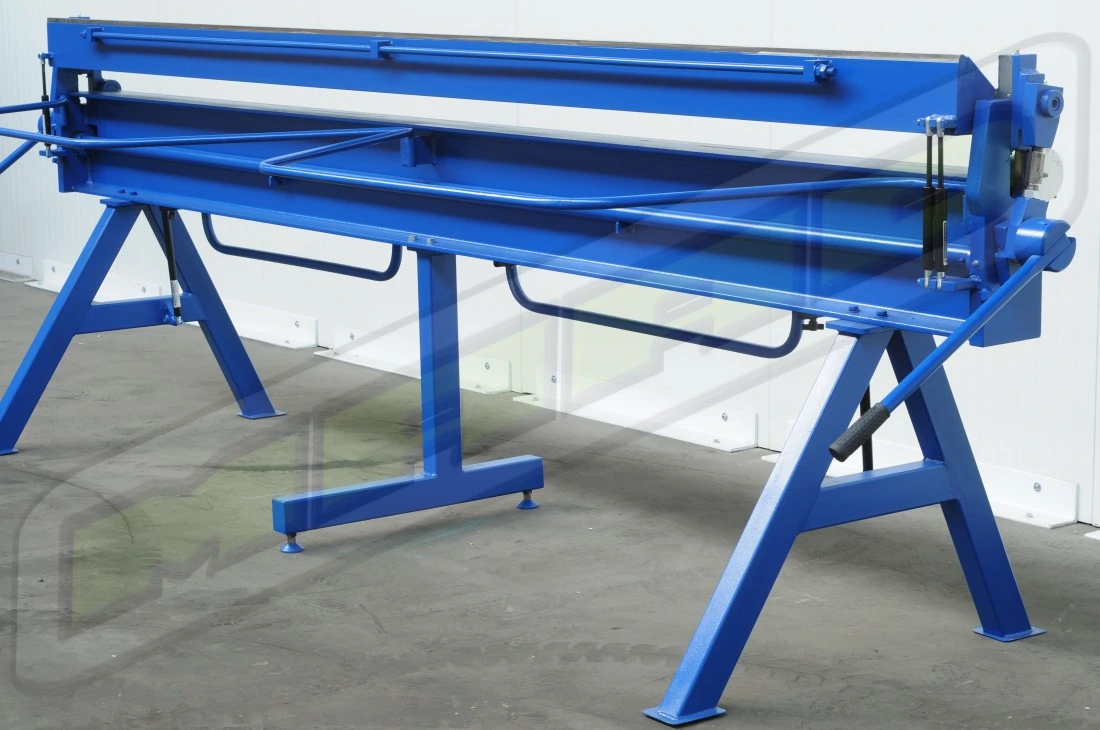

Model ZG-3500/0.8 is a model made to special order due to its untypical working length of 3600 mm. The way of execution of the machine and the materials used is identical with model ZG-3000/1.0! Side mechanisms of the machine are made with the use of brass bushings ensuring long-term work without failure. Strong, massive and at the same time compact construction of these bending machines guarantees long-term operation while maintaining appropriate bending quality.

All working beams made with one mounting on CNC milling machines with working length min 4000 mm!
