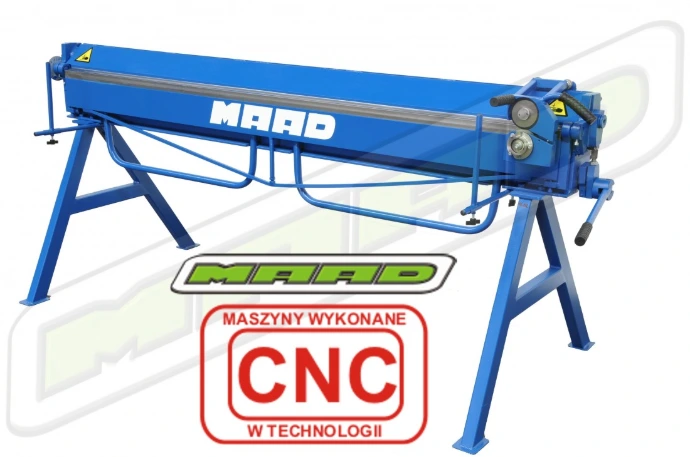

ZG-2000/0.7

Work width: 2150 mm

Max. thickness of the sheet:

0.7 mm for Rm < 400 MPa

Max. bend angle: 155°

Bending beam width: 15 mm

Weight: 200 kg

ZGL-2000/0.7

Work width: 2100 mm

Max. thickness of the sheet:

0.7 mm for Rm < 400 MPa

Max. bend angle: 155°

Bending beam width: 15 mm

Weight: 149 kg

One-man operation possible!

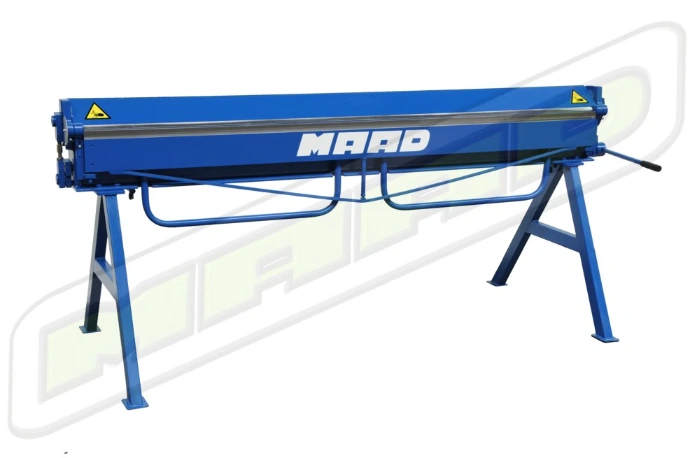

ZG-2000/1.2

Work width: 2150 mm

Max. thickness of the sheet:

1.2 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 20 mm

Weight: 250 kg

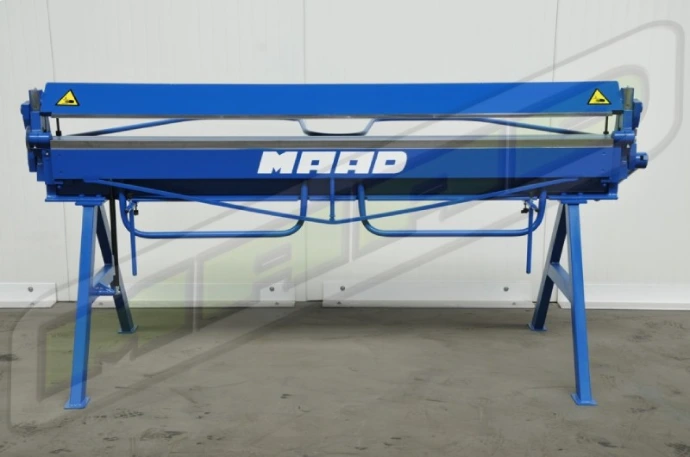

ZG-2000/1.5

Work width: 2100 mm

Max. thickness of the sheet:

1.5 mm for Rm < 400 MPa

Max. bend angle: 135°

Bending beam width: 25 mm

Weight: 320 kg

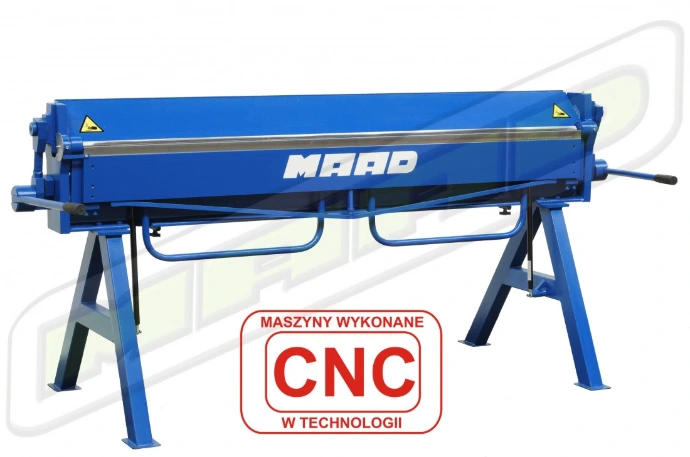

ZG-2000/2.0

Work width:  2050 mm

Max. thickness of the sheet:

2.0 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 30 mm

Weight: 500 kg
