Work width:  2050 mm

Max. thickness of the sheet:

2.0 mm for Rm < 400 MPa

Max. bend angle: 130°

Bending beam width: 30 mm

Weight: 500 kg

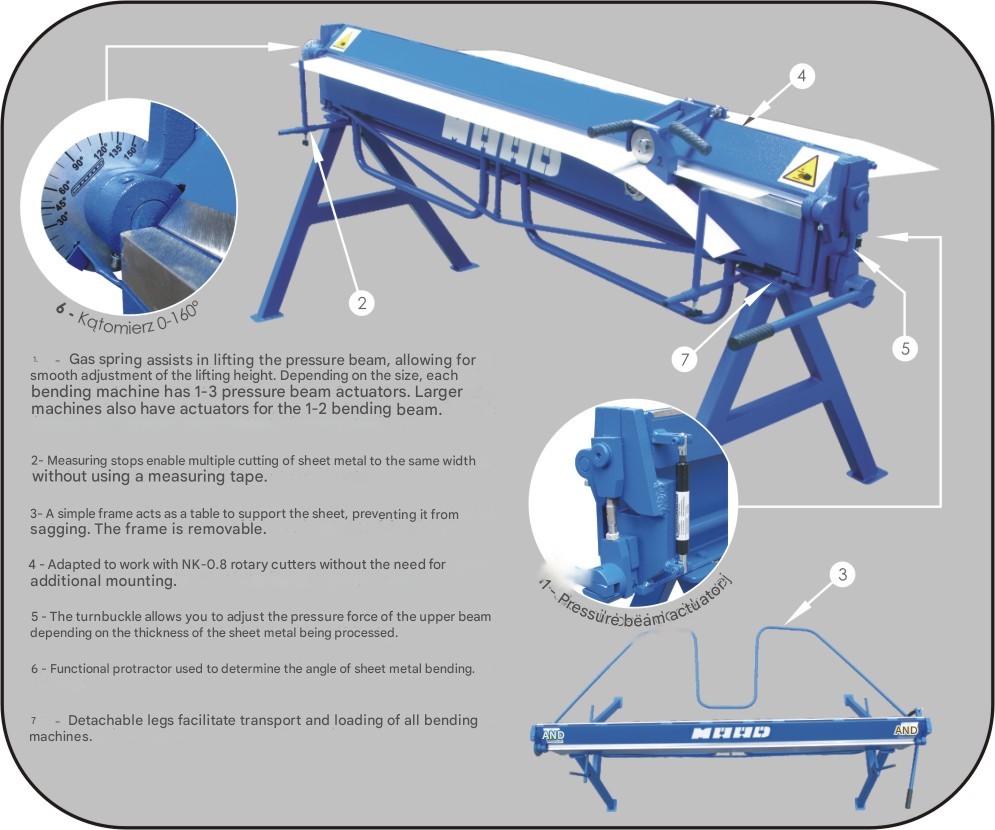

The largest and the most powerful model of the ZG-2000 type bending machine, i.e. a machine capable of bending sheet metal up to 2 mm in thickness and with the parameters Rm < 400 MPa (plasticity limit). The ZG-2000/2.0 bending machine is equipped with a total of 4 gas cylinders with the total force of 2820 N, which translates into the lifting capacity of about 285 kg!

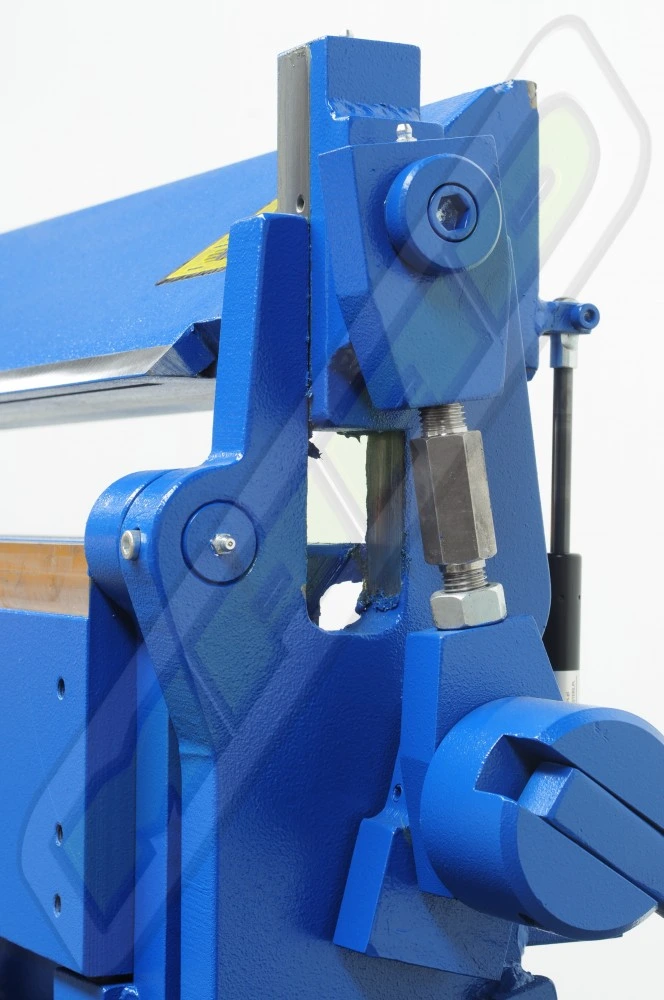

The side mechanisms of the bending machine are burned and milled from 35 mm thick sheet metal, which increased the strength of the machine in relation to the model ZG-2000/1.5. All elements of the mechanisms or working beams were manufactured on milling centers and CNC lathes.
