Work width: 2650 mm

Max. thickness of the sheet:

0.7 mm for Rm < 400 MPa

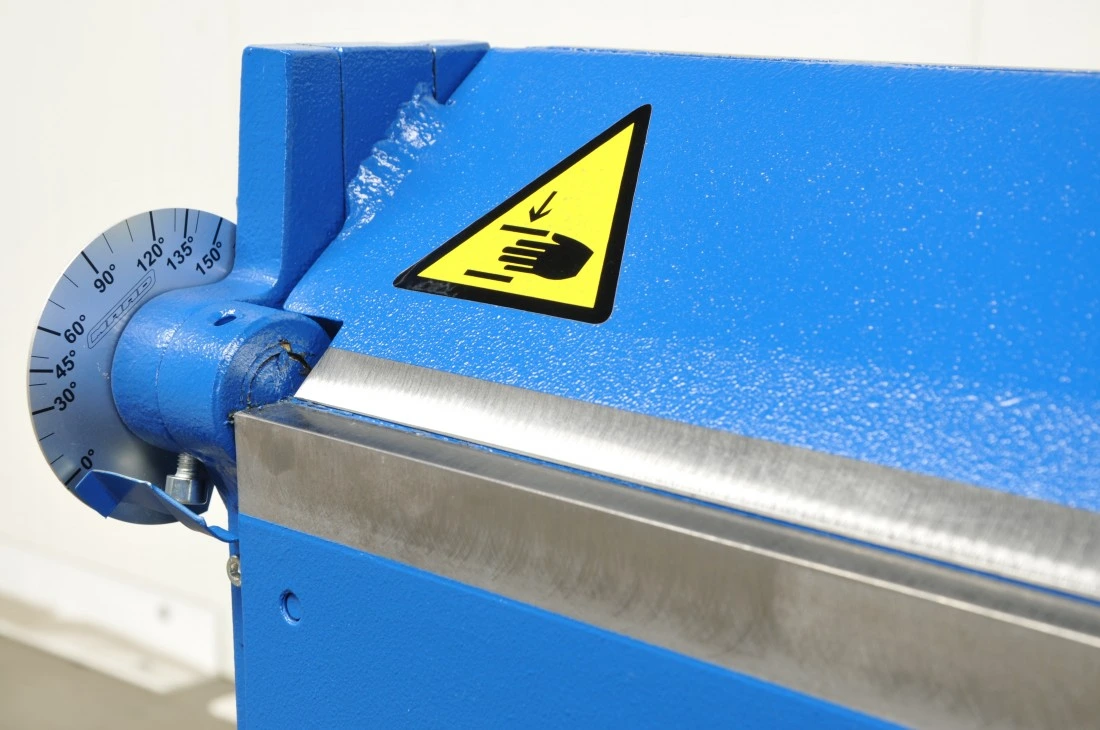

Max. bend angle: 150°

Bending beam width: 20 mm

Weight: 300 kg

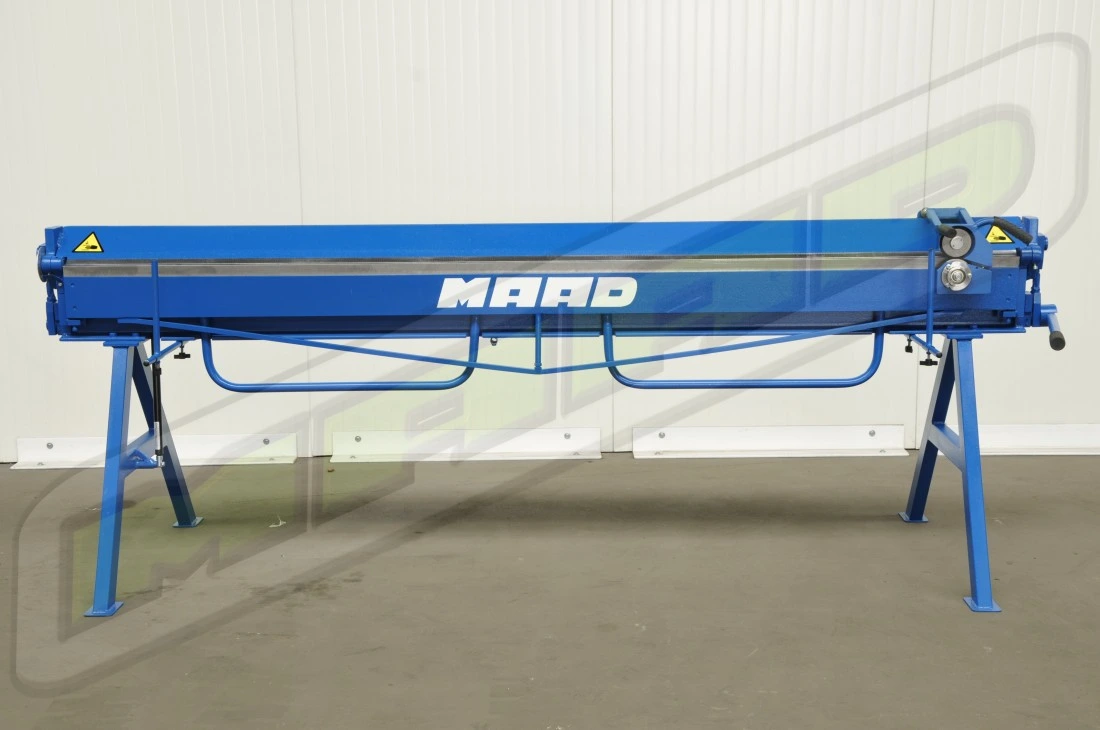

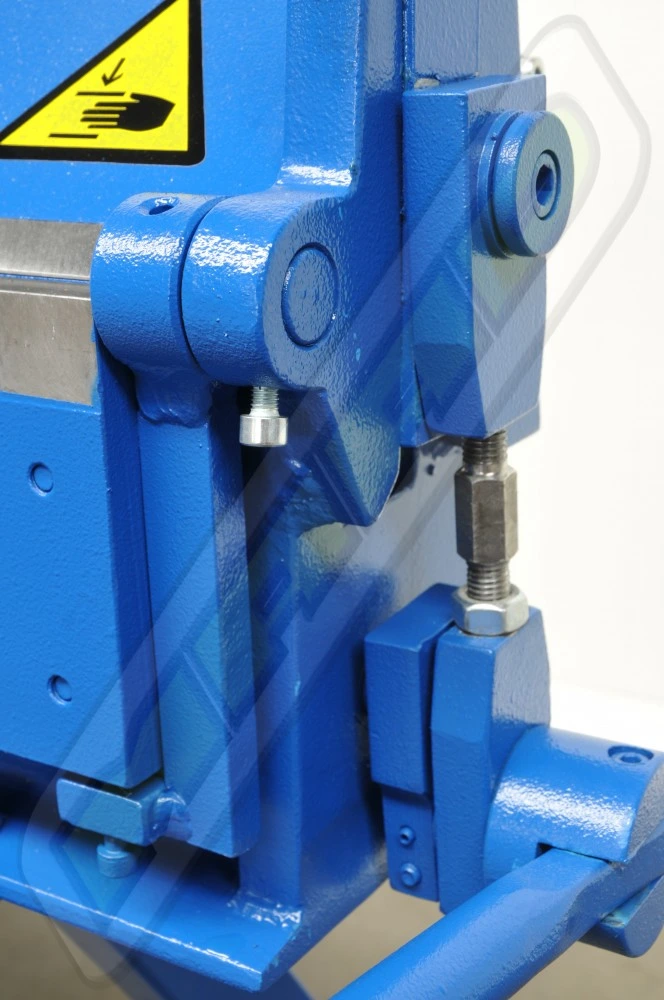

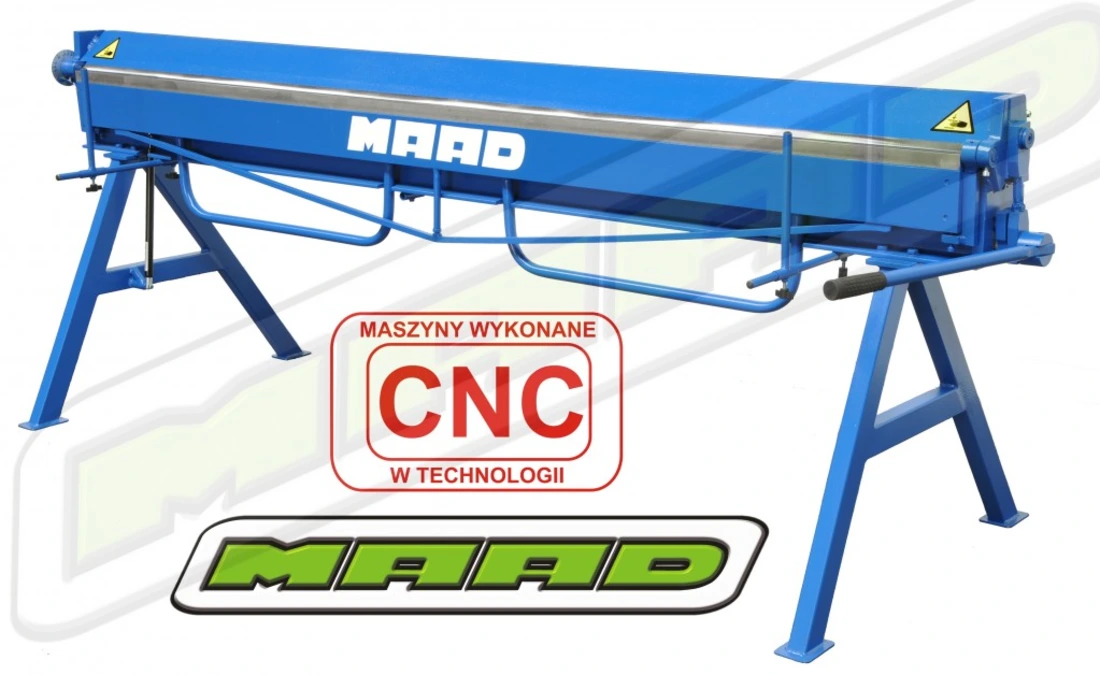

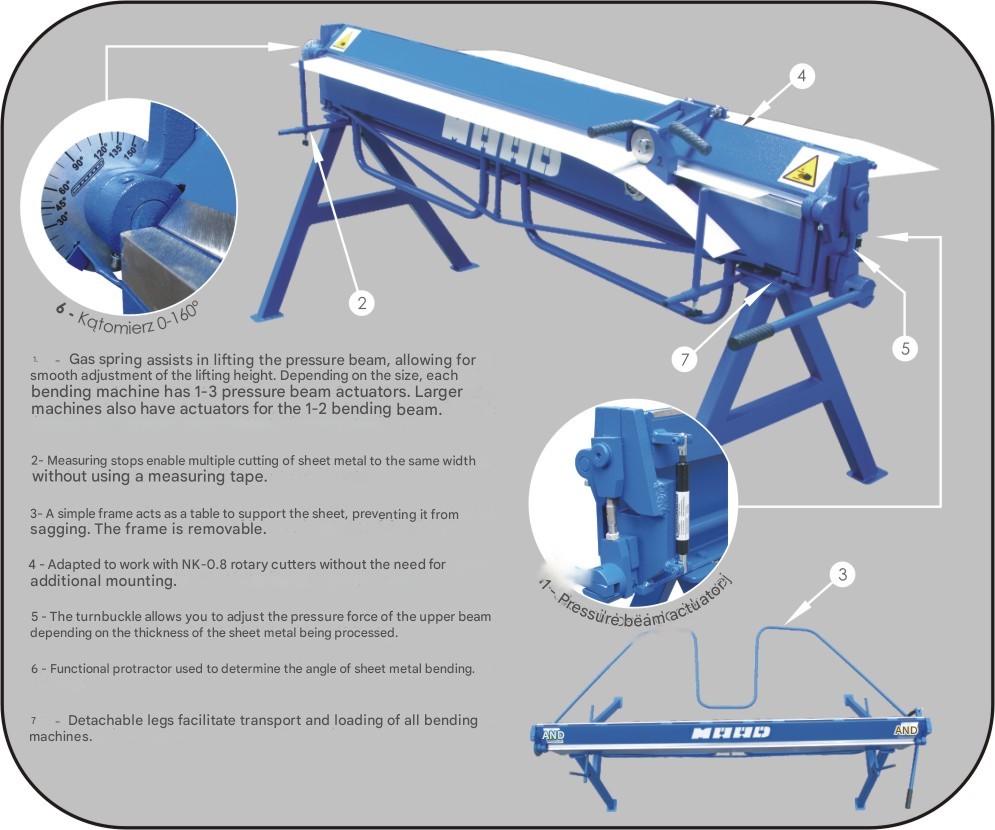

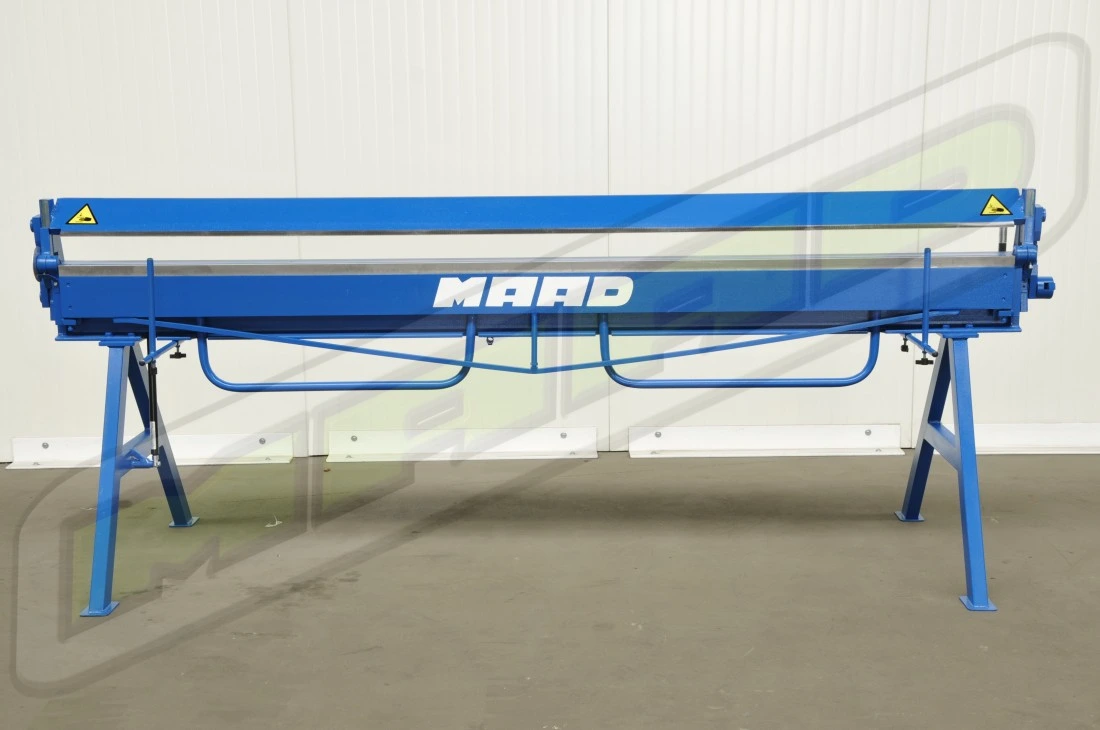

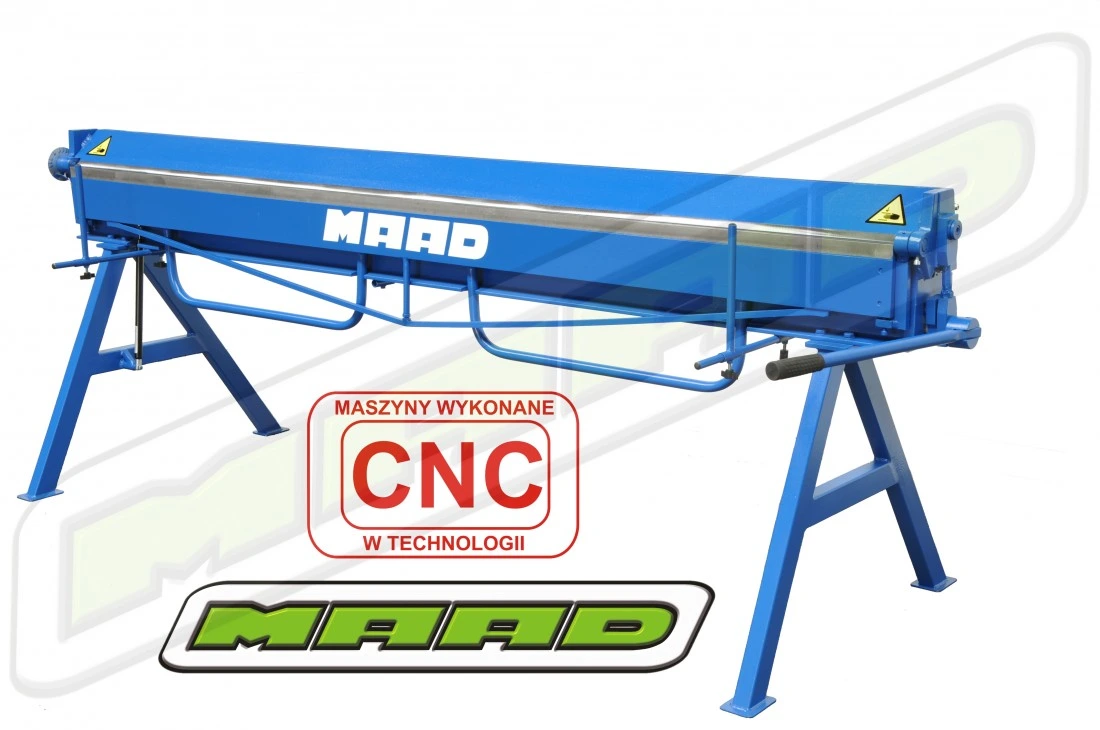

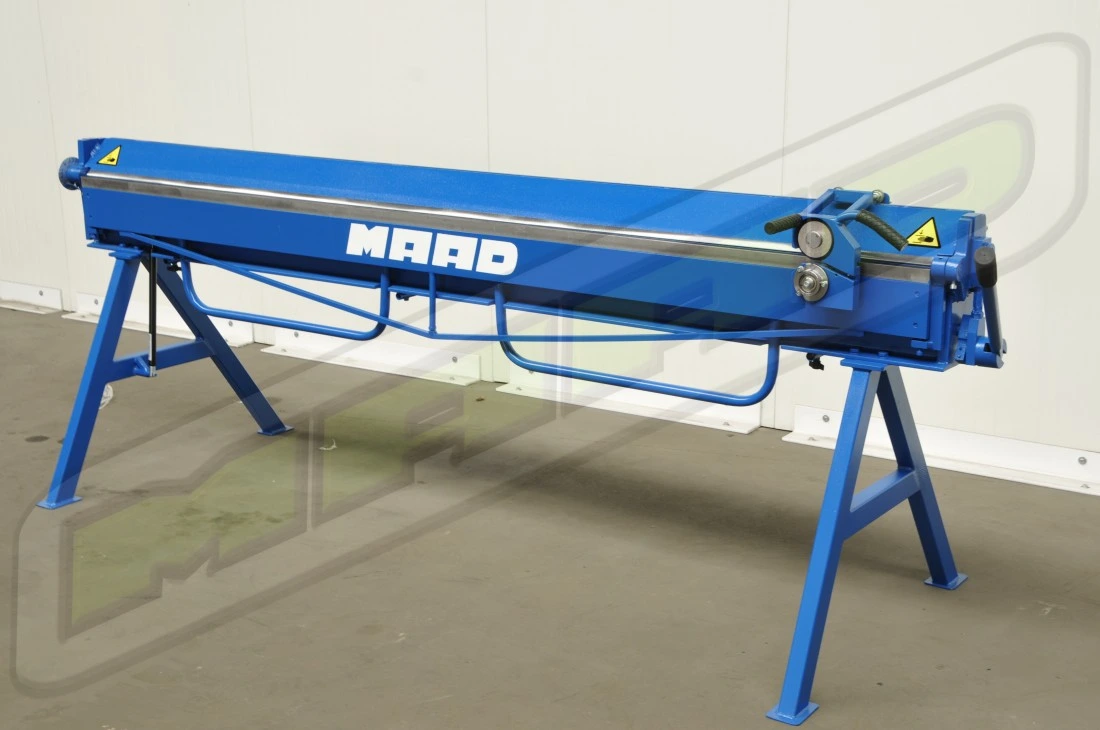

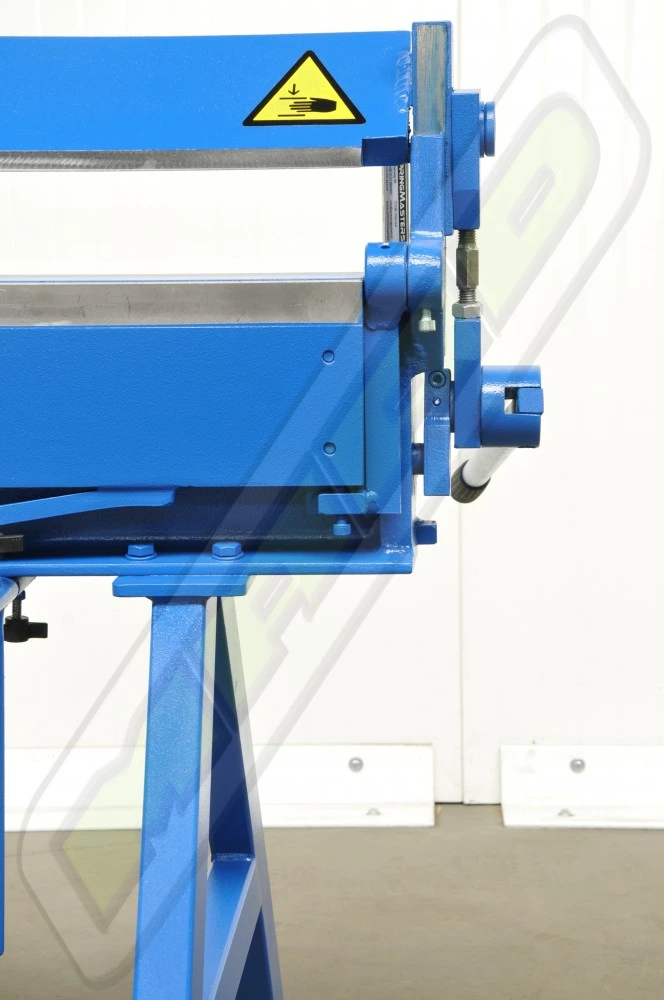

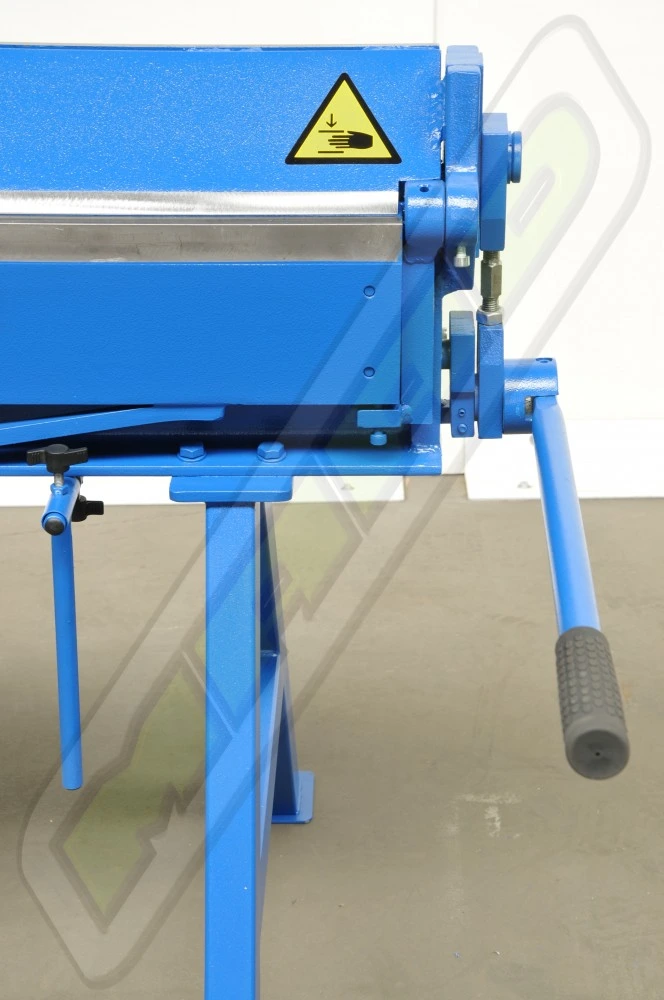

ZG-2500 series bending machines are equipped with two cylinders for lifting the pressure beam and one cylinder for lifting the bending beam. ZG-2500/0.7 bending machine is mainly designed for roofers working with metal sheets up to 2500 mm long and 0.7 mm thick. The narrow bending beam, i.e. 20 mm, makes it possible to perform a huge number of roofing flashings on one stable machine. The use of brass bushings in the rotating mechanisms of the device significantly extends the service life of the bending machine and the possibility of using it with a circular knife additionally adds functionality.
