Work width: 1100 mm

Max. thickness of the sheet:

0.8 mm for Rm < 400 MPa

Max. bend angle: 155°

Bending beam width:   14 mm

Weight: 80 kg

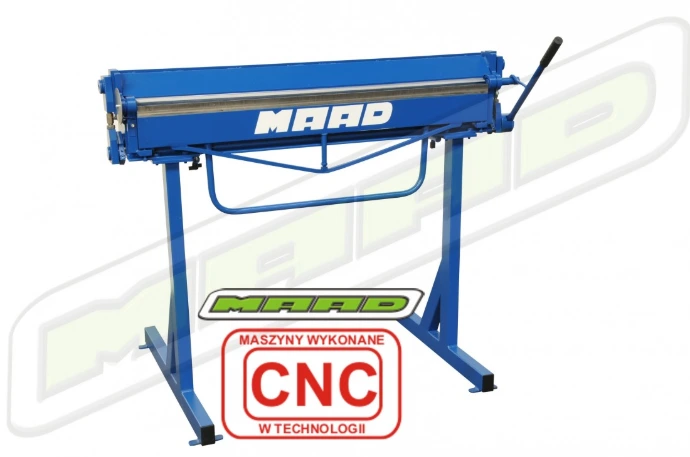

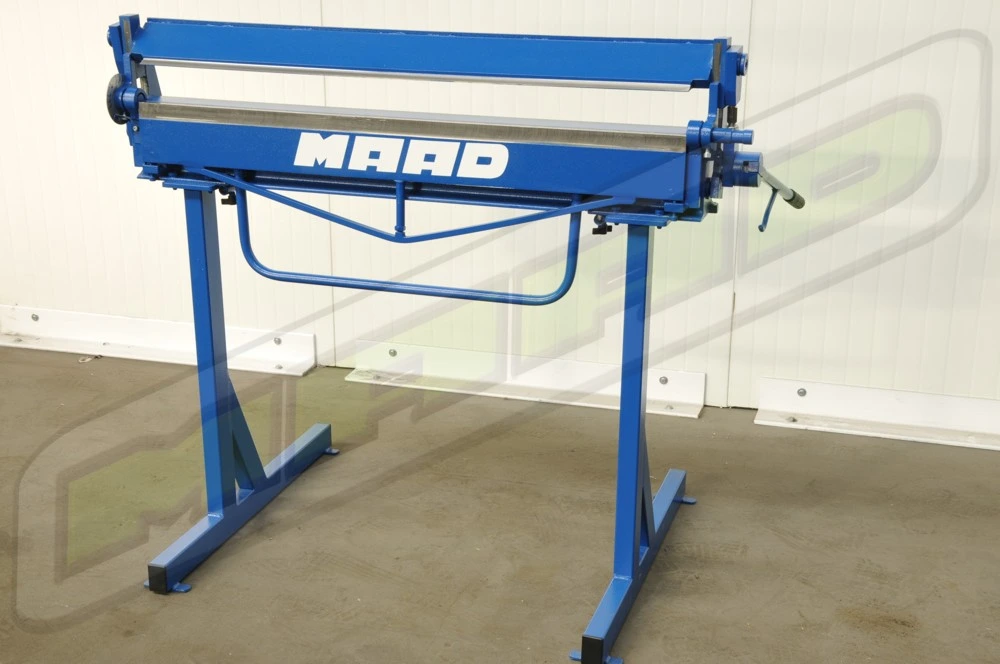

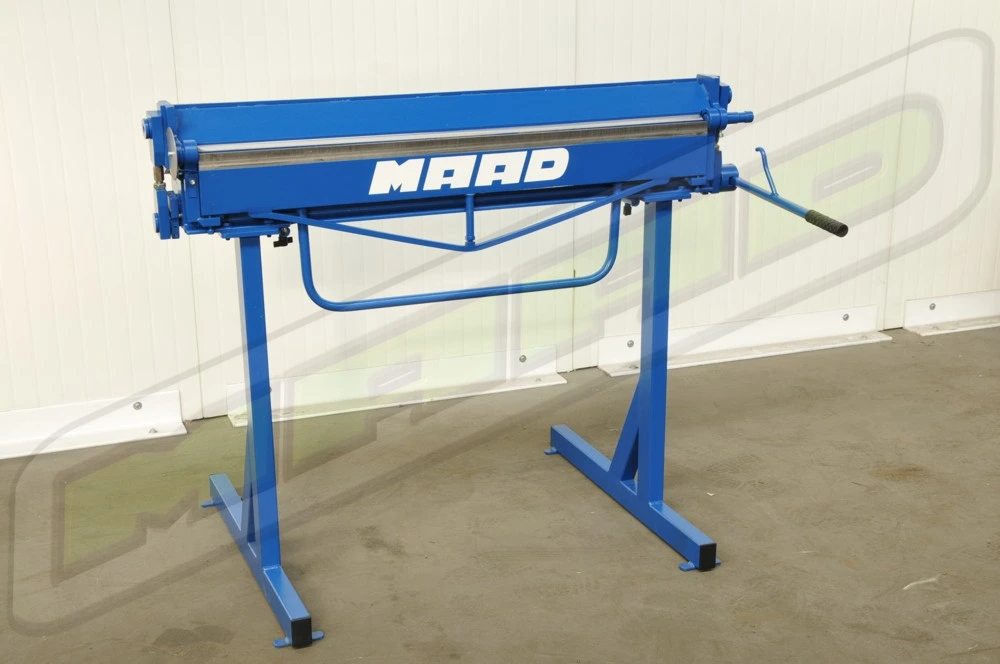

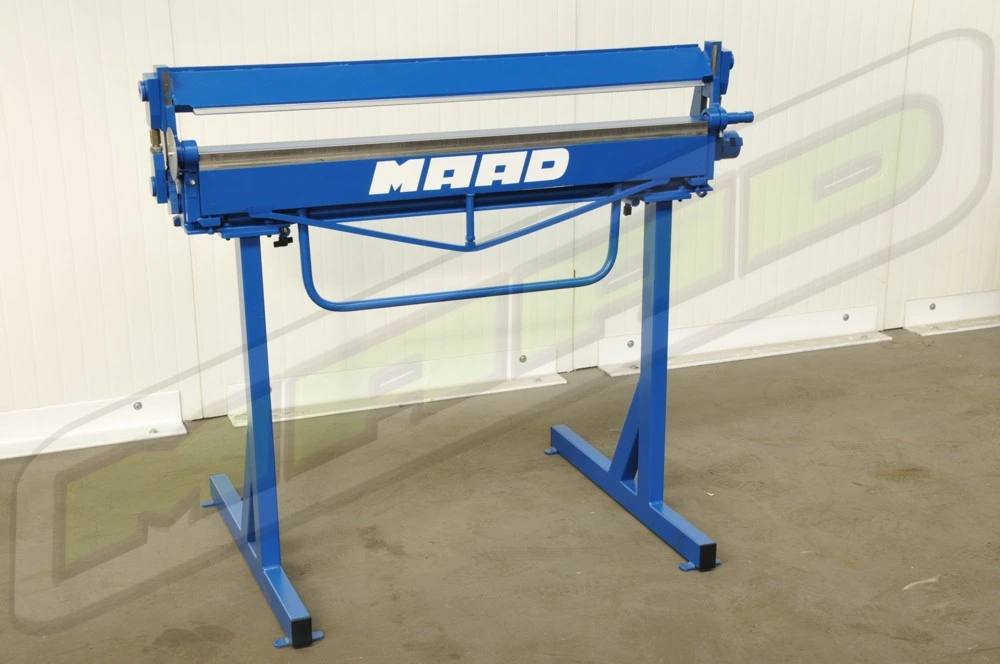

The bending machine ZG-1100/0.8 is a new design of ZG series machines. Small overall dimensions, low weight, mobility, stability, high quality of workmanship are only some of the advantages of the new bending machine. The standard machine is equipped with all necessary elements to work on it. ZG-1100/0.8 bending machine does not have an actuator at the pressure beam.

Model ZG-1100/0.8 is the only bending machine with a working width of only 14 mm! It gives huge advantages when making small elements where single millimeters play an important role.
