Flashings for Designo windows

Roof angle: 15° – 90°

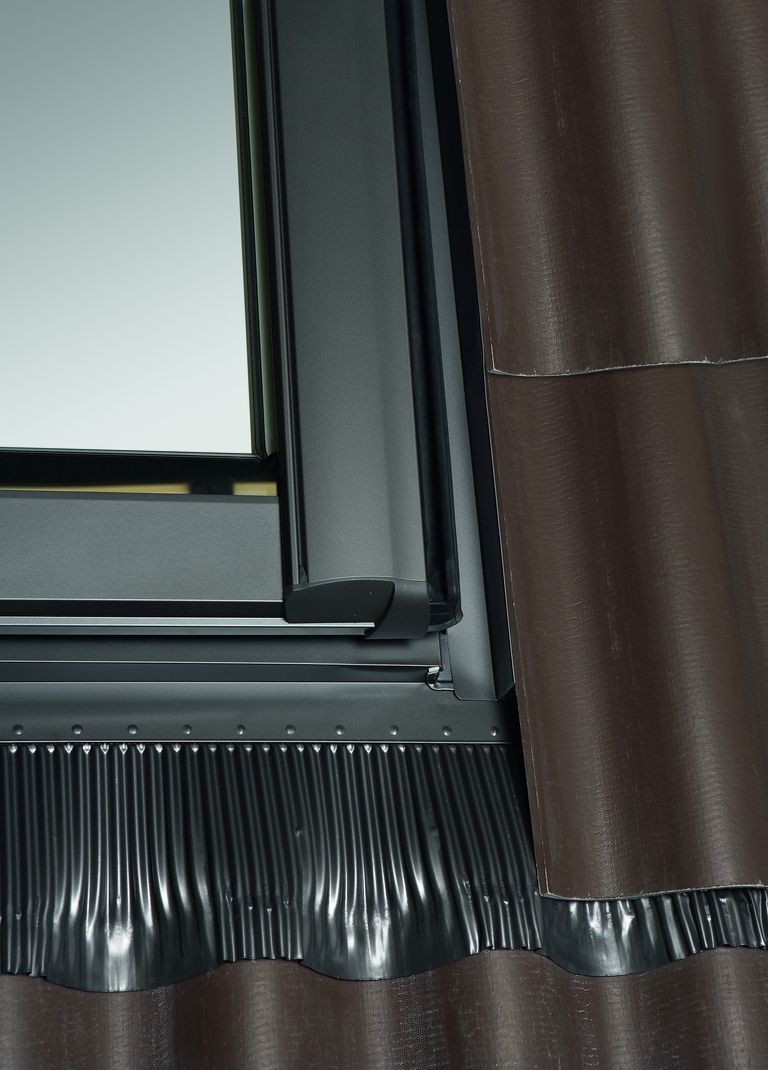

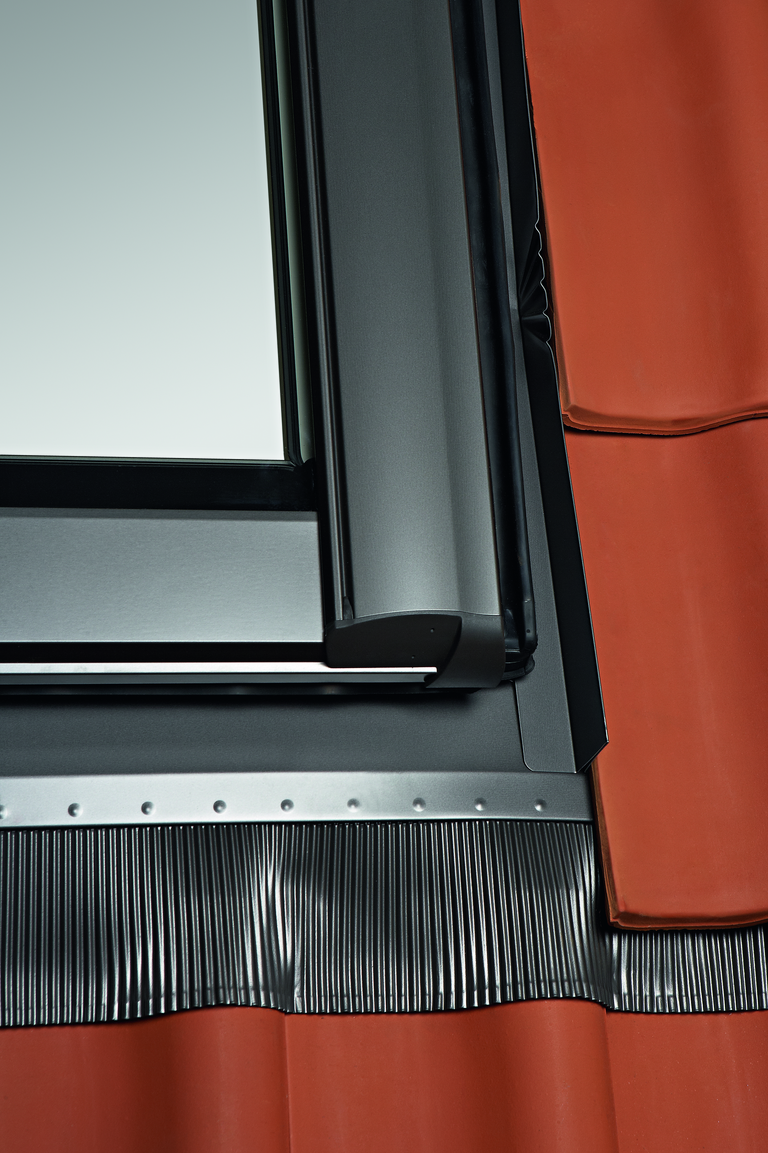

EDZ flashing – for profiled coverings with a profile height of up to 5 cm

Sample coverings:

  • Corrugated ceramic tile
  • Corrugated concrete tile

Roof angle: 15° – 90°

EDF flashing – for sheet coverings

 Sample coverings:

  • Steel roofing tile
  • Troughed sheet
  • Standing seam flat metal sheet
  • Click flat metal sheet

Roof angle: 15° – 90°

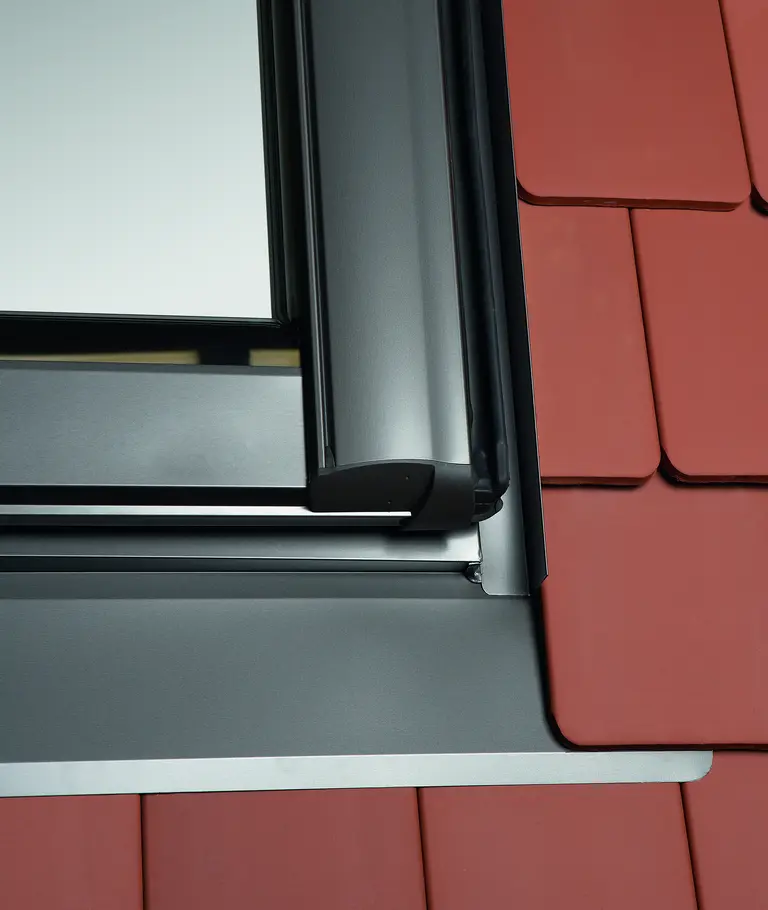

EDS flashing – for flat coverings up to 3 cm thick

Sample coverings:

  • Slate
  • Double lapped plain tile
  • Flat concrete tile
  • Shingle
  • Felt



Roof angle: 15° – 90°

EDL flashing – for flat coverings up to 3.8 cm thick (2 x 19 mm)

Sample coverings:

  •  Slate
  •  Fish scale plain tile

Flashing sides: multipart

Roof angle: 15° – 90°

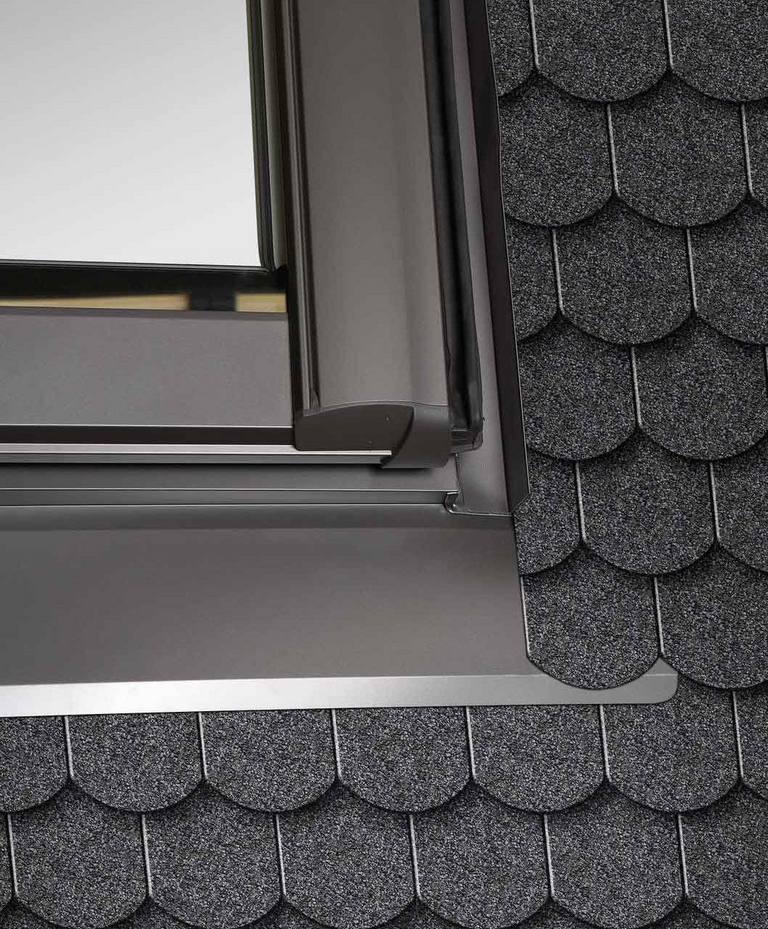

EDG flashing – for flat coverings up to 1.6 cm thick (2 x 8 mm)

Sample coverings:

  • Bituminous shingle

Flashing sides: multipart



Roof angle: 15° – 90°

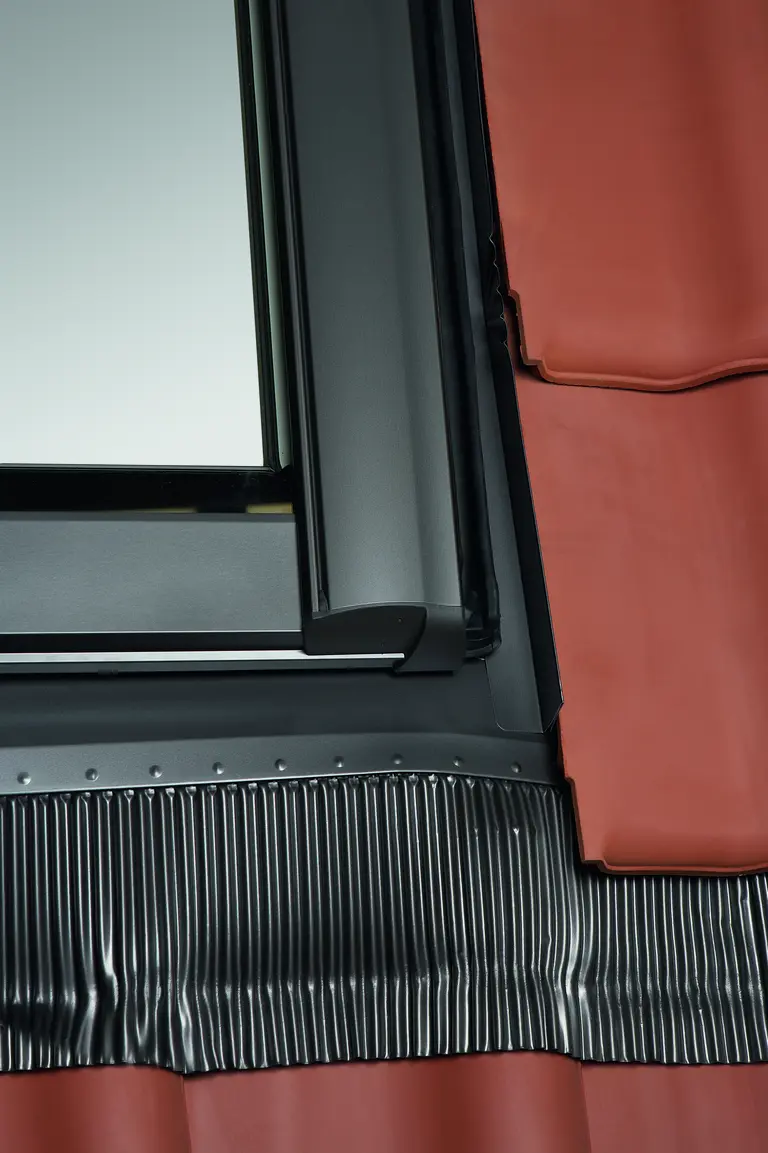

EDH flashing – for profiled coverings with a profile height of up to 9 cm

Sample coverings:

  • High-profile ceramic tile
  • High-profile concrete tile

Roof angle: 15° – 90°

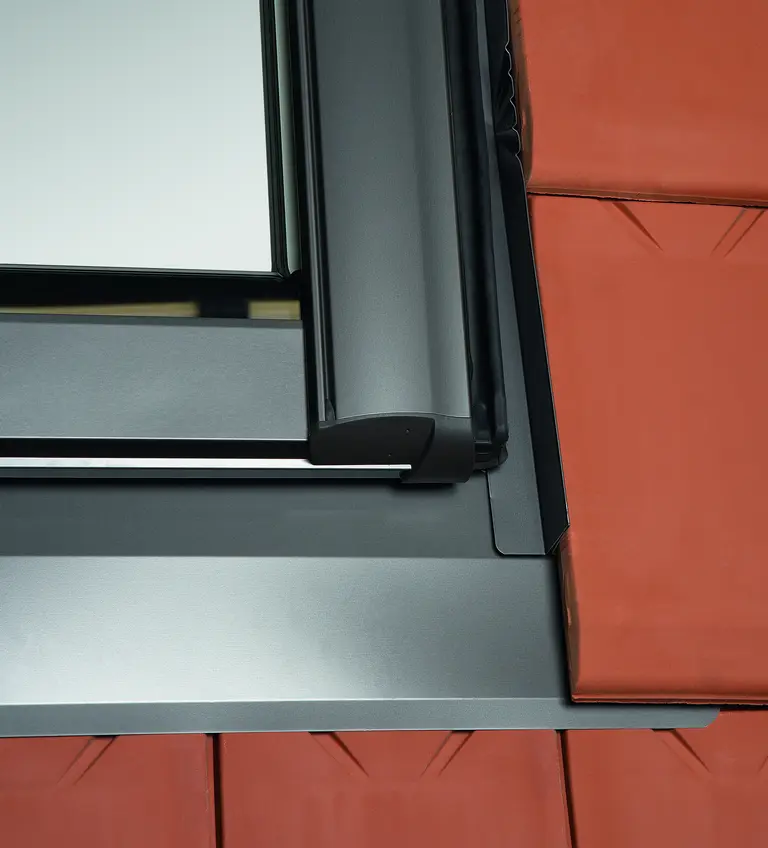

EDT flashing – for flat coverings over 3 cm thick

Sample coverings:

  • Flat ceramic tile



For roof pitches of 15° – 90°

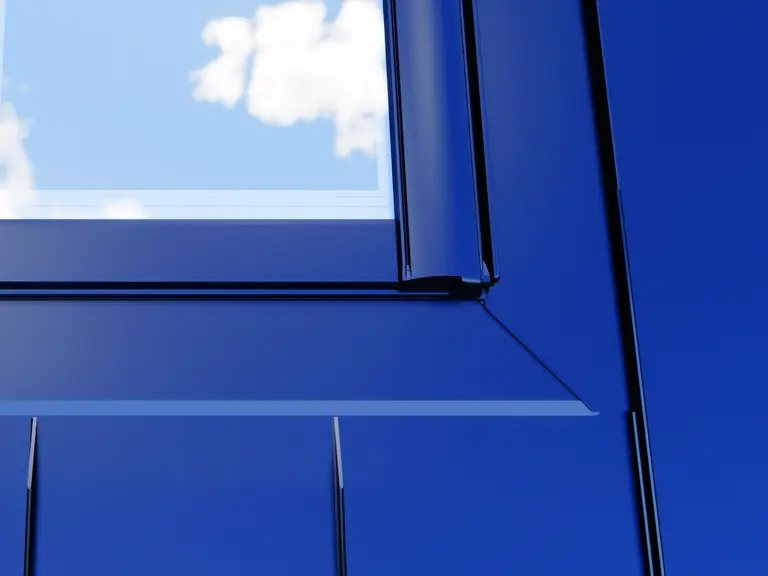

EDQ flashing – for flat metal coverings

Sample coverings:

  •  standing seam click-lock
